Construction of the Upper Cage of the 110 cm Cruxis Telescope

  Click here to view the design page of the Upper Cage.
Overview of the Upper Cage
Some construction details

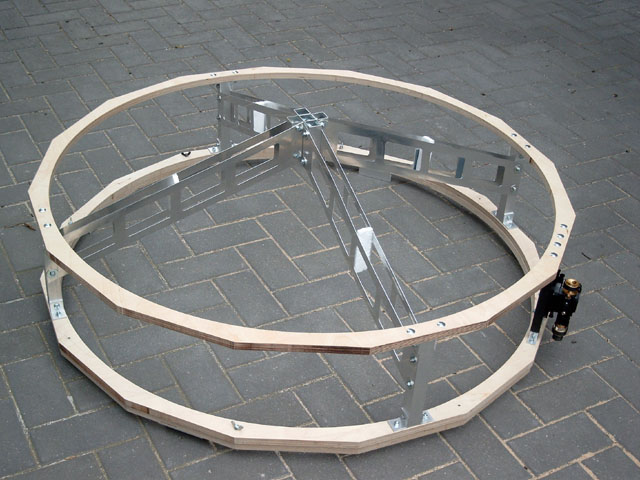

The 115 cm (45") inner diameter secondary cage with 200 mm (8") secondary will weigh less than 9 kg (20 lbs) and is still quite portable. In the images the cage is fixed on its mounting ring (the lower ring in the assembly).

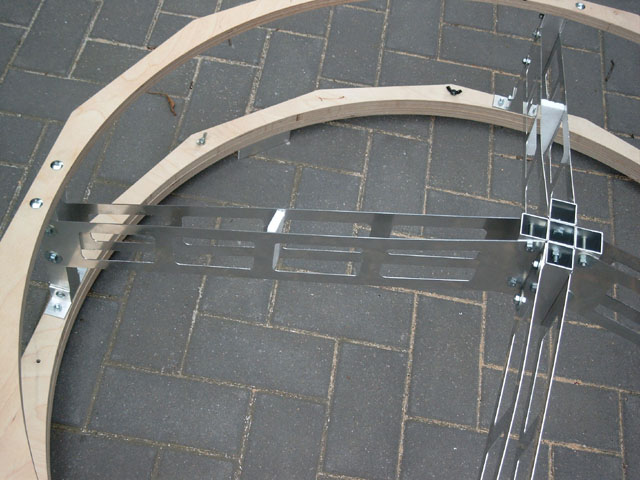

A double spider gives superb stiffness at minimum weight. Spider vanes are 1 mm (0.04") thick and 100 mm (4") wide aluminum sheet:

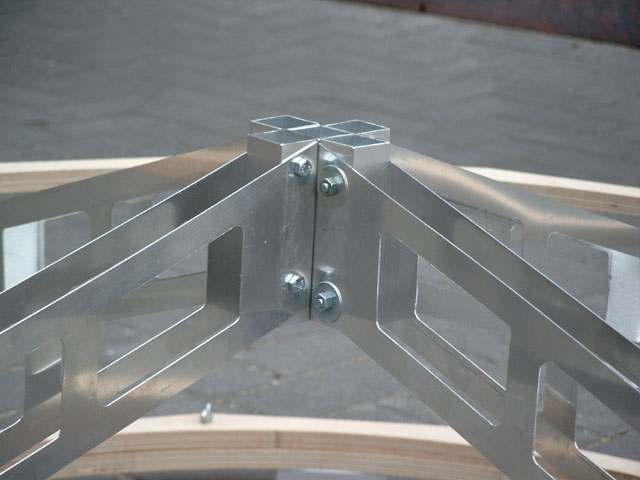

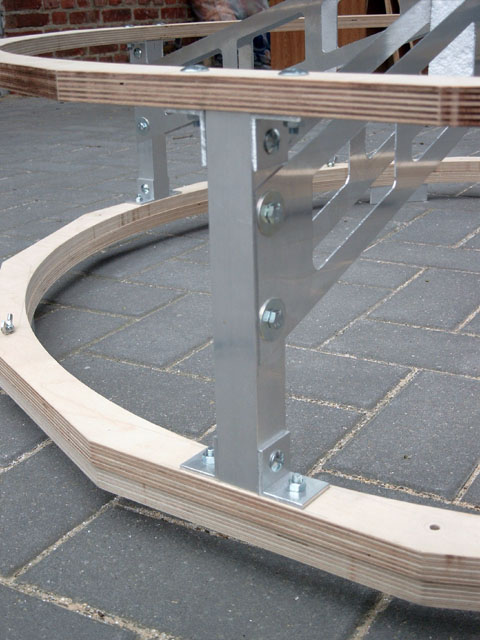

Attachment of the vanes on the tube is very simple with two bolts both on the edge and in the center:

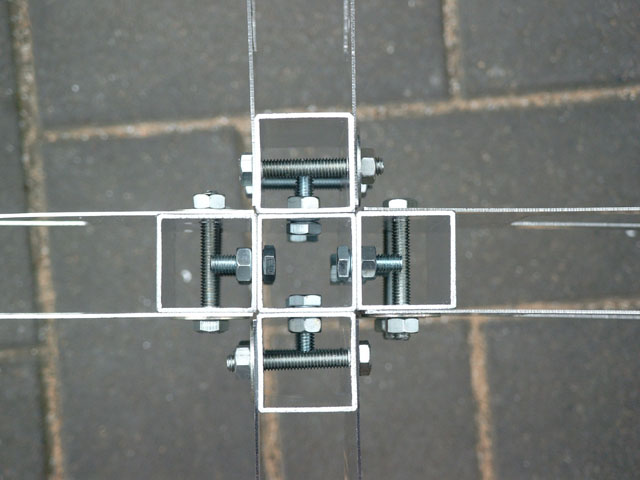

The branches are tensioned in the center using the small bolts that attach the central tube:

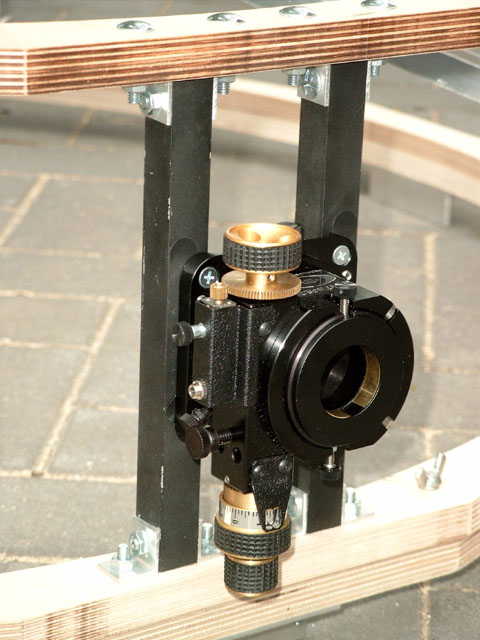

A JMI EV-1nM focuser with motor is attached on two smaller tubes:

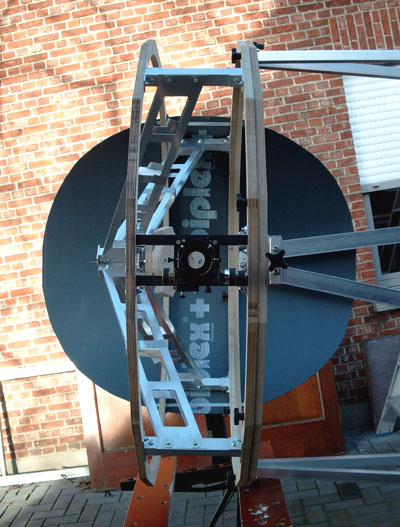

The upper cage on the truss frame and light baffle installed:
